      »  Street Light   I   Strip   I   Wall Wash

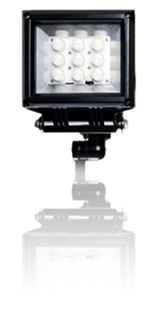

           ■ Wall Wash-16W   ■ Wall Wash-25W   ■ Wall Wash-60W

Part Number: SB70035(15° WW) SB70039(15° CW)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

     ■ Photometrics


► Description:

• High power LED application
• Strong aluminum alloy housing
• Various kinds of beam angle
• Color temperature consistency
• High power factor
• Customize photometric design
• Long life time, low maintenance cost
• Energy saving
• Environmental friendly, meet RoHS requirement
• IP65 approved

► Caution:

• Do not submerse.
• Keep lamp at least 16 feet from pools and spas.
• Risk of electric shock.

► Applications:

16W / 25W
• Shipping and receiving loading docks
• Machine stations such as stamping presses
• Inspection station lighting
• Rugged indoor and outdoor spot light
• Flag pole spot light

16W / 25W / 60W
• Wall wash lighting
• Commercial lighting
• Architectural lighting
• Outdoor lighting

► Specification:

Product code VT-WSEN2BA00 (15° CW)
VT-WSEN2BA01(45° WW)
 VTWWEN7BA00(15° CW)
  VT-WWEN7BA01(15° WW)
Material Aluminum housing / Frosted glass
Total power consumption 25W
Input Voltage 90~240V
Beam Angle 15° / 25° / 45°
Color Temperature (WW/CW) 2700K / 6000K ± 10%
CRI (WW/CW) 65 / 75
Brightness (Lumen output) 750(WW) / 1000 (CW) lm ± 10%
LED Lifetime >30,000 hrs
Operating Temperature -20°C ~ +40°C
Dimension 270 x 185 x 73cm
Safety Approval CR / UL / RoHS
